How to Choose Fiber Optic Cable Models? 3 Expert Secrets for Precise Matching

Faced with a dazzling array of Ֆիբոր պոստտիկ կայում models like GYTA, GYXTW, GJFJV, making the right choice is no easy task. Incorrect selection can lead to budget overruns at best, and network performance bottlenecks or frequent outages at worst. A case our team handled in 2023 revealed that a factory mistakenly chose non-arԱվելինd cable for a high electromagnetic interference environment, causing intermittent control signals and an average of several hours of production downtime monthly. Counterintuitively, the most expensive cable isn't necessarily the best for you. Here are three expert-level secrets to help you precisely match your needs with the right cable model.

Secret 1: Environmental Suitability is the Primary Decision Factor

This is the cornerstone of selection. Incorrect environmental adaptation is the root cause of most failures. You must first ask: Where will the cable be deployed?

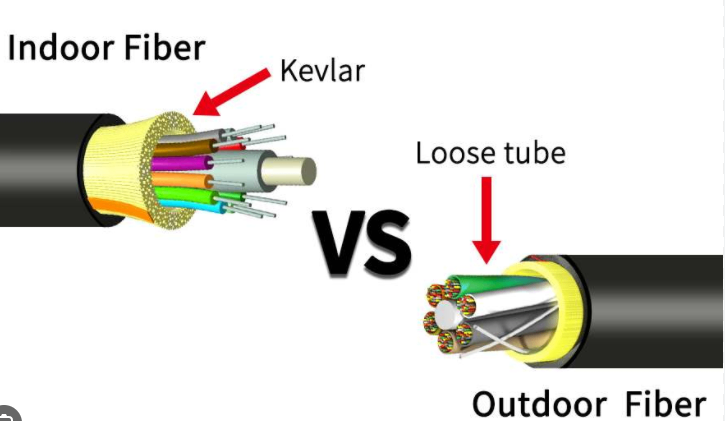

• Outdoor/Aerial/Duct Environments:

• Core Challenges: Mechanical tension, moisture erosion, temperature fluctuations, UV exposure.

  Www.adsscable.cn

• Expert Selection: Prioritize GYTA (Metal strength member, Aluminum-Polyethylene Laminate sheath) or GYTS (Metal strength member, Steel-Polyethylene Laminate sheath). They are structurally robust with good moisture resistance and tensile properties. For lightning-prone areas or scenarios requiring electrical isolation, consider GYFTY or other non-metallic cables.

• ⚠Warning: Using indoor cables outdoors, even for a short section, will cause the entire link to fail due to moisture ingress and insufficient physical properties.

• Indoor/Vertical Riser/Horizontal Cabling Environments:

• Core Challenges: Confined spaces, tight bend radii, high fire safety requirements.

• Expert Selection: Choose GJFJV (Tight-buffered fiber, PVC jacket) or GJFJZY (Flame Retardant Polyolefin jacket). They offer good flexibility for easier routing within buildings. The key is to focus on the jacket's fire rating, such as LSZH (Low Smoke Zero Halogen) jacket, which minimizes toxic fume emission in a fire.

• Special Industrial Environments:

• Core Challenges: Severe electromagnetic interference, extreme temperatures, chemical corrosion, frequent mechanical movement.

• Expert Selection: Build upon GYTA and upgrade to GYTA53 (with additional corrugated steel tape armor and polyethylene outer sheath), providing excellent mechanical protection and rodent resistance. For moving scenarios like industrial robots, dedicated Drag Chain Cables are required, designed to withstand millions of reciprocating bends.

Secret 2: Deeply Interpret Fiber Type and Count Parameters

Once the outer jacket is determined, focus on the "core" – the fiber itself. The numbers and letters in the model determine the network's transmission capability.

• Fiber Type (Single-Mode vs. Multimode): This is the most critical performance decision.

• Single-Mode Fiber (B1.3/G.652.D, B6.a/G.657.A2): Thin core (9µm), extremely long transmission distances, nearly unlimited bandwidth. The only choice for campus backbones and long-haul communications. For future-proof scenarios, B6.a (G.657.A2) bend-insensitive single-mode fiber has become the default recommendation for new projects.

• Multimode Fiber (A1a/OM3, OM4, OM5): Thick core (50/62.5µm), short transmission distances, but lower transceiver costs. Suitable only for intra-rack data center connections or short-distance in-building links. The current mainstream is OM4 (A1a.2) and OM5, supporting higher speeds.

• Fiber Count: Balance current needs with future redundancy.

• Principle: Meet current port requirements and reserve at least 30% spare fibers for backup and future expansion. For example, if 8 fibers are currently needed, opt for a 12 or 16-fiber cable. For instance, a GYTA-24B1.3 cable indicates a 24-core single-mode outdoor cable.

Fiber Optic Cable Model Key Parameter Decision Table

Secret 3: Evaluate Using a Total Cost of Ownership (TCO) Perspective

The cheapest purchase price might mean the highest maintenance costs later. Experts evaluate costs from the project's entire lifecycle perspective.

• Procurement Cost: The purchase price of the cable itself.

• Deployment Cost: Is the cable easy to handle, route, and splice? For example, lightweight GYXTW cable might save labor compared to heavy GYTA53.

• Operation & Upgrade Cost: High-quality cables with redundant fibers avoid the high cost of future construction for expansion. Our team calculated that adding a new cable in an operational data center costs 5-10 times the cable's material price.

• Risk Cost: Choosing cables that don't meet fire ratings can pose safety hazards, the potential loss from which is immeasurable.

Step-by-Step Guide: Performing a Precise Fiber Optic Cable Model Selection

1. Environment Diagnosis: Define the entire cable route path, identifying all environmental risks (outdoor, indoor, EMI, bending, etc.).

2. Requirements Analysis: Determine required transmission distance, bandwidth, fiber type (single-mode/multimode), and fiber count (including redundancy).

3. Structure Screening: Based on step one, narrow down the cable category that meets environmental requirements (e.g., GY for outdoor, GJ for indoor).

4. Parameter Confirmation: Within the selected category, determine the specific fiber specification (e.g., B1.3, A1a.2) and core count based on step two's requirements.

   Www.adsscable.cn

5. Supplier & Technical Confirmation: Request samples and test reports, confirm key parameters (e.g., attenuation, cutoff wavelength), and evaluate the Total Cost of Ownership.

Fiber Optic Cable Model Selection Checklist

Before placing the final order, confirm:

• The physical deployment environment (indoor/outdoor/special) has been thoroughly surveyed.

• The use of single-mode or multimode fiber has been determined based on transmission distance and bandwidth needs.

• Sufficient fiber count has been calculated, reserving at least 30% redundancy.

• The cable's mechanical properties (tensile, crush resistance, bend radius) meet installation requirements.

• The cable's jacket material complies with the deployment environment's fire and environmental standards.

• Different options have been evaluated from a Total Cost of Ownership (TCO) perspective, not just comparing purchase price.

• Key performance parameter test reports and after-sales service policies have been confirmed with the supplier.

ConclusionWww.adsscable.cn

Choosing a Ֆիբոր պոստտիկ կայում model isn't a guessing game. By systematically applying these three expert secrets – prioritizing environmental suitability, accurately interpreting fiber parameters, and adopting a Total Cost of Ownership perspective – you can transform the selection process from a daunting challenge into a strategic decision for building a reliable, efficient, and future-proof network infrastructure. Remember, the right cable is the silent foundation of your network, and its value will be demonstrated for years to come.

Frequently Asked Questions (Q&A)

1. Q: Both GYTA and GYXTW are outdoor cables. What's the main difference?
A: The main difference is the structure. GYTA is a loose tube, stranded cable, where fibers are in plastic tubes around a central strength member, suitable for ducting and aerial installation. GYXTW is a central tube cable with armor, adding a double-sided plastic-coated steel tape armor around the central plastic tube, offering better crush resistance and allowing direct burial, but it's also heavier and has a larger bend radius.

2. Q: Can I reduce the requirement for fiber count redundancy when the budget is tight?
A: This is a very dangerous "cost-saving" measure. The construction cost (including labor, downtime, etc.) of adding cables later due to exhausted fibers far exceeds the material cost of adding a few Ավելին cores initially. Redundant fibers are the most important "insurance" for a network and should not be excessively compromised.

3. Q: I see multimode fiber models like OM3, OM4, OM5. How should I choose?
A: OM3 and OM4 are 850nm laser-optimized 50/125µm fibers, with OM4 performing better than OM3. OM5 is wideband multimode fiber, supporting shortwave wavelength division multiplexing (SWDM). For new data centers, OM4 is the most cost-effective mainstream choice; if there are extremely high requirements for future higher-speed upgrades, consider OM5.

4. Q: Why are some single-mode fiber models B6.a (G.657), and is it better than the traditional B1.3 (G.652.D)?
A: B6.a (G.657.A2) is "bend-insensitive" single-mode fiber. While fully compatible with traditional G.652.D fiber, it significantly improves bend performance. In scenarios with limited bending space like FTTH and high-density data centers, it markedly reduces installation loss and failure rates, making it the preferred choice for modern cabling.

5. Q: For patch cords between equipment, is there anything special to note when selecting?
A: Yes. Patch cords should be indoor flexible cables like GJFJV or GJFJZY. The key is that the connector type (LC/SC, etc.) and polish type (UPC/APC) must match the equipment ports. FurtherԱվելին, the loss grade (e.g., ≤0.2dB) and return loss (e.g., UPC>55dB, APC>65dB) are critical indicators of quality – request test reports from suppliers.
