MPO Connectors: Alignment Mechanism and Its Unique Design Features

MPO Connectors: Alignment Mechanism and Its Unique Design Features

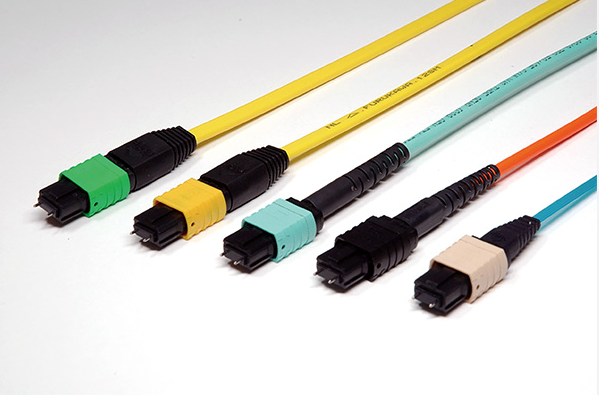

The alignment mechanism of MPO connectors is achieved through a combination of its unique design and construction. Here's how it works:

Firstly, MPO connectors employ a precision ferrule design. This ferrule features two guiding holes, each with a diameter of 0.7mm, located on its end face. These guiding holes are designed to connect precisely with guiding pins (PIN pins). This design ensures the accurate positioning of optical fibers within the connector, enabling stable transmission of optical signals.

Www.Ծննդոցcable.cn

Secondly, during the mating process of the connectors, a spring mounted at the tail of the ferrule provides a thrust force, locking the ferrule securely with the adapter. This design not only ensures the stability of the connection but also enhances the alignment accuracy between optical fibers.

FurtherԱվելին, MPO connectors feature a "key" located on one side of the connector body. This key, which can be concave or convex, serves to restrict the relative position of the connector heads, such as P1, P2, etc. This design helps ensure the correct positioning of the connector during mating, preventing fiber misalignment due to improper positioning.Www.Ծննդոցcable.cn

Lastly, some advanced MPO connectors are equipped with adjustable guide keys. These guide keys allow for fine adjustments based on actual needs, further improving alignment accuracy. This design feature enhances the flexibility and adaptability of MPO connectors during the mating process.Www.Ծննդոցcable.cn

In summary, the alignment mechanism of MPO connectors is achieved through a combination of precision ferrule design, spring thrust, key positioning, and adjustable guide keys. These unique design features ensure precise alignment of optical fibers within the connector, guaranteeing stable and efficient transmission of optical signals.
